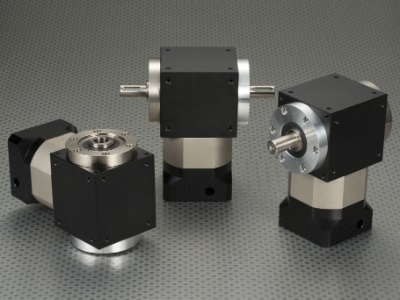

MFT Series Multip Connection Options (Hollow / Single / Double Output Shaft)
Planetary Gearbox Features

．Backlash:

Stage0 (L0): Standard: ≦6 arc-min

Stage1 (L1): Standard: ≦8 arc-min

Stage2 (L2): Standard: ≦10 arc-min


．Ratio:

Stage0(L0): 1

Stage1(L1): 3-10

Stage2(L2):12-100


．Efficiency of Full Load:

Stage0(L0): ≧98%

Stage1(L1): ≧95%

Stage2(L2): ≧92%

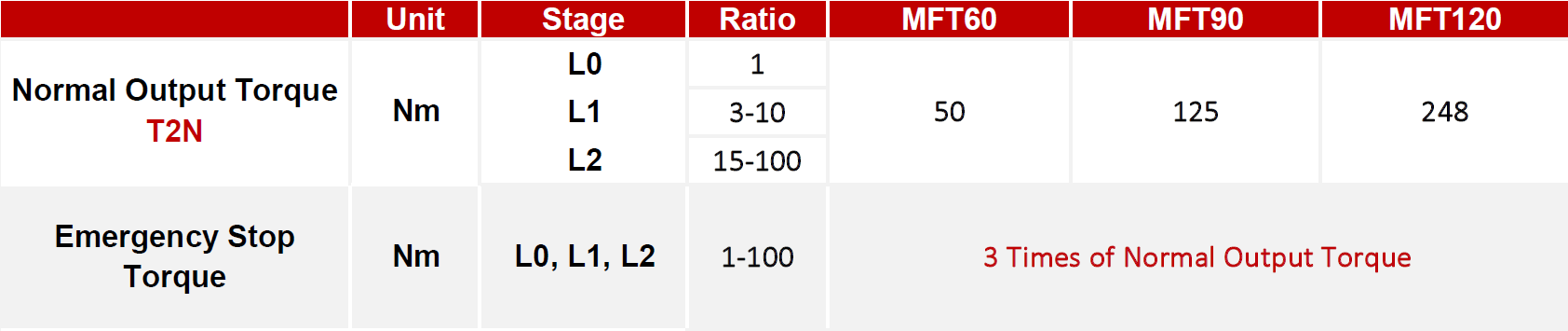

．Normal Output Torque: Torque: 15-114 Nm/p>

．Running Noise: 65-79 dBA

．Protection Grade: IP65

Catalog

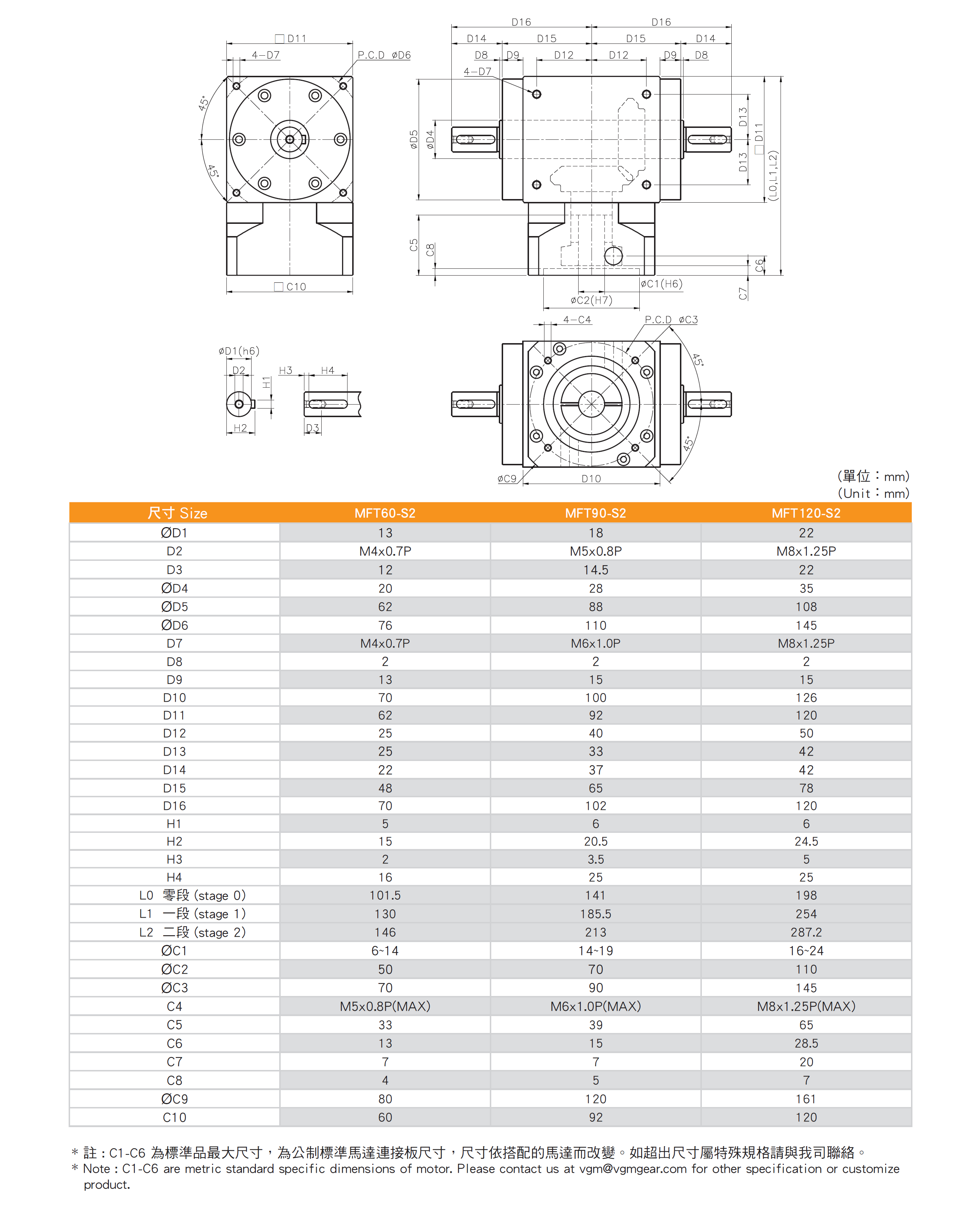

Drawing
Frame Size
60
90
120

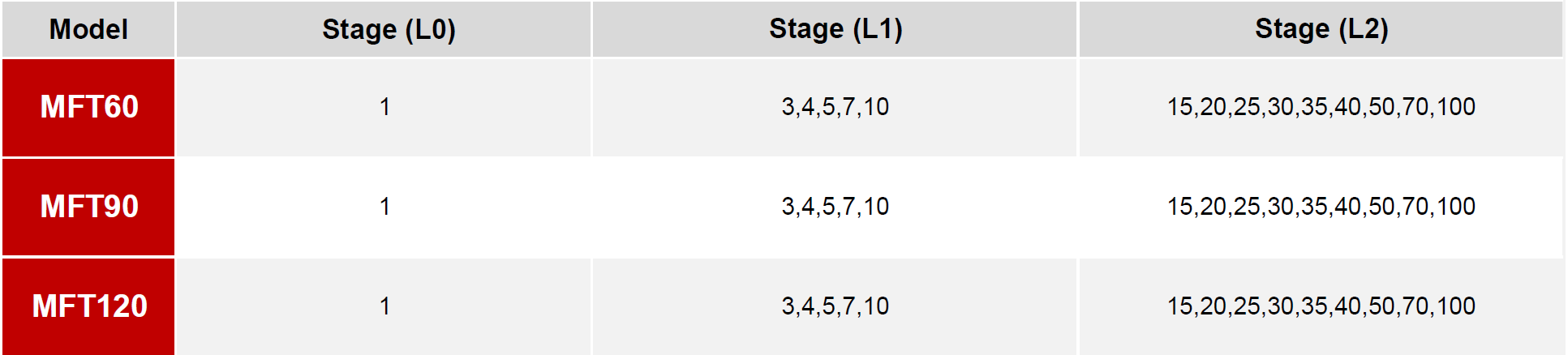

Ratio
Stage0 (L0)
1
Stage1 (L1)
3
4
5
7
10
Stage2 (L2)
15
20
25
30
35
40
50
70
100
Other ratio
Please contact us
Backlash

Standard Backlash:
(L0): ≦6 arc-min
(L1): ≦8 arc-min
(L2): ≦10 arc-min

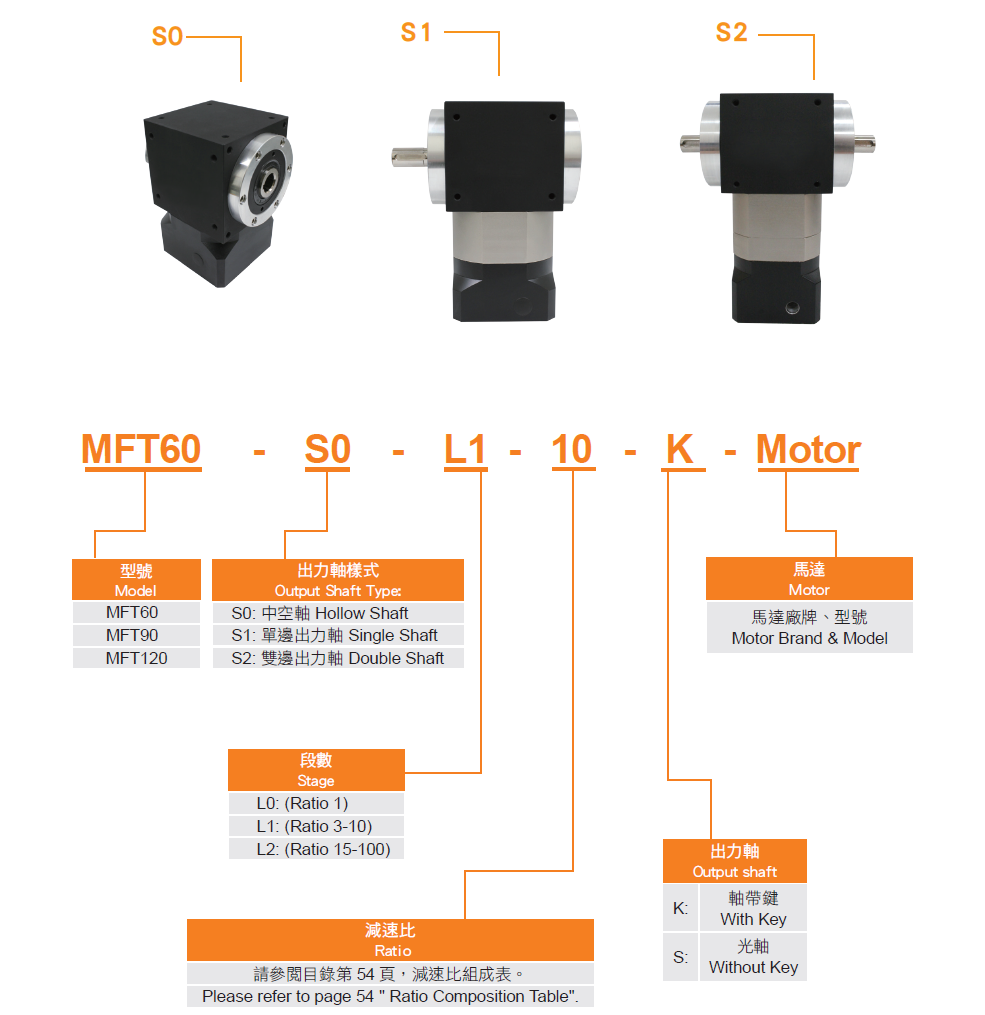

Output Shaft Type

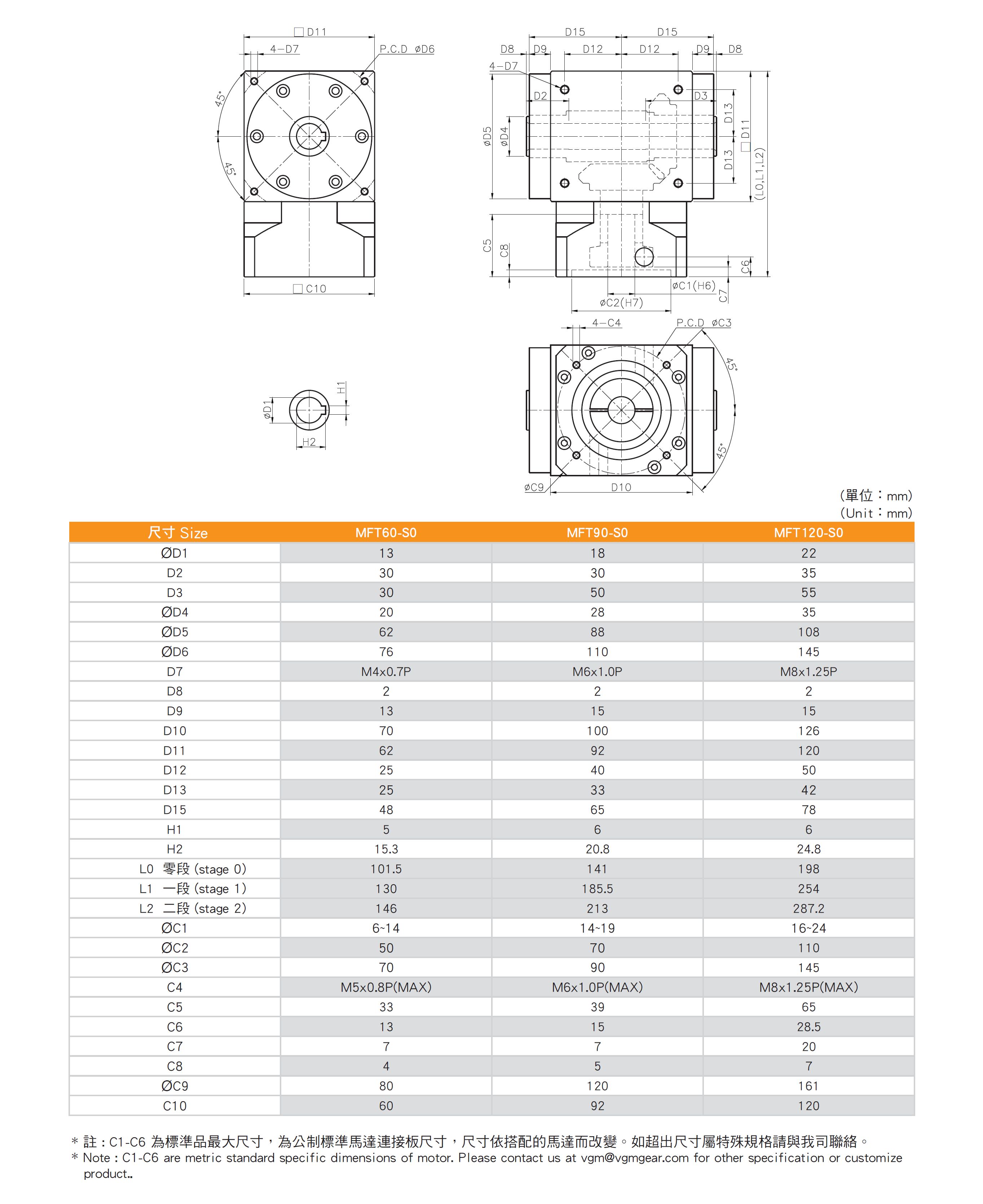

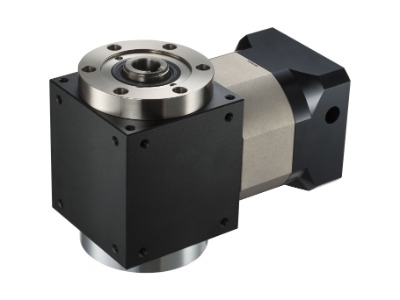

(S0) Hollow Shaft

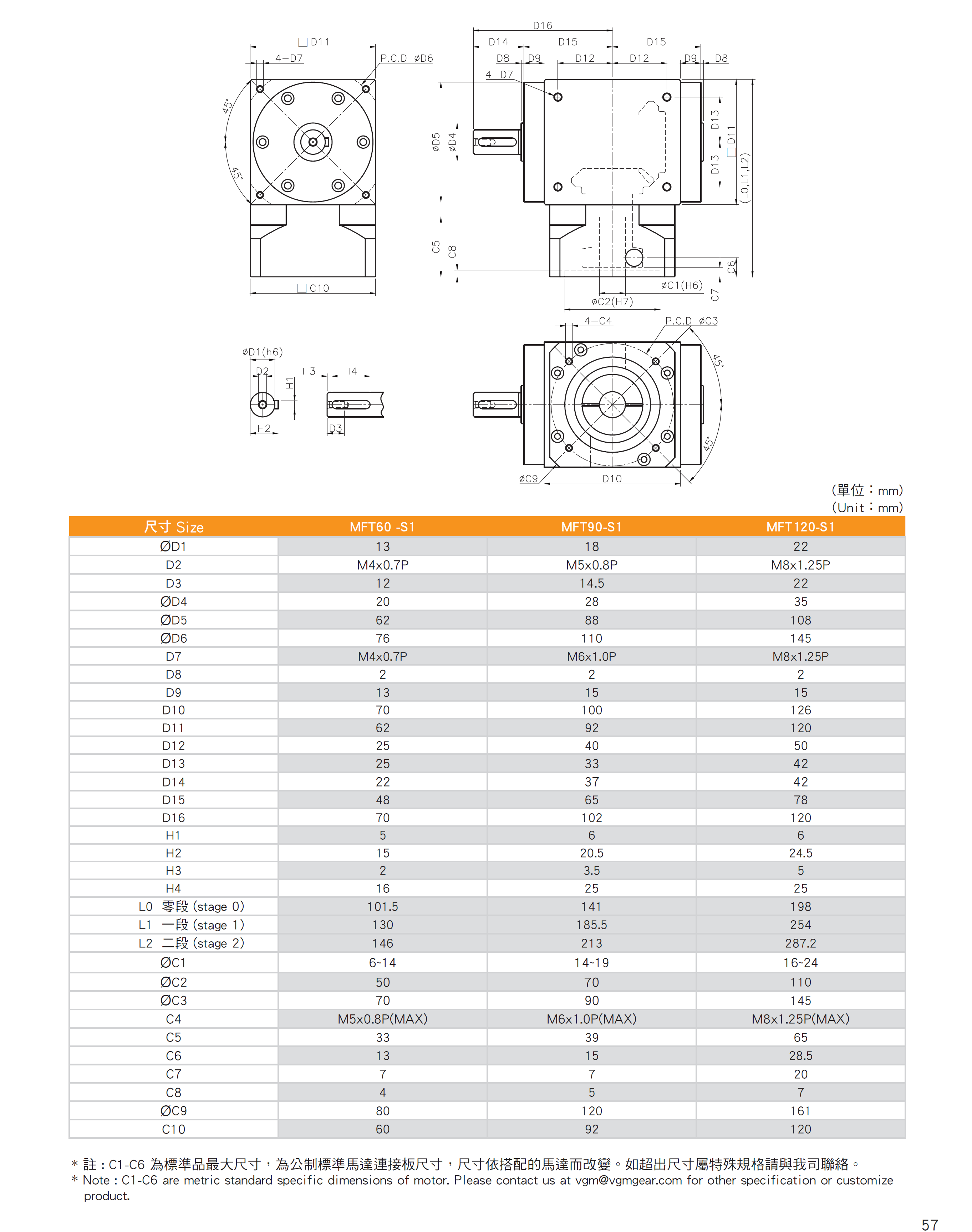

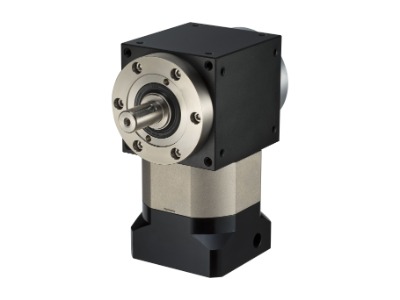

(S1) Single Output Shaft

(K) Output Shaft with Key

(S) Output Shaft without Key (Smooth)

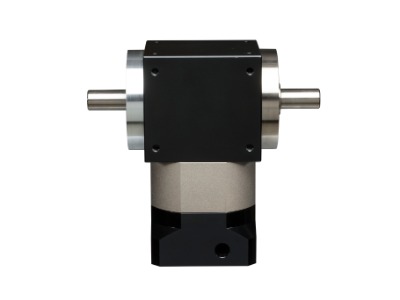

(S2) Double Output Shaft

(K) Output Shaft with Key

(S) Output Shaft without Key (Smooth)





Features

．The highest dynamics in multiple axis systems

．Unrivaled price-performance ratio

．Low heat generation at highest speeds

．For any mounting position

．Lifetime lubrication for maintenance-free operation

．Precise gearing

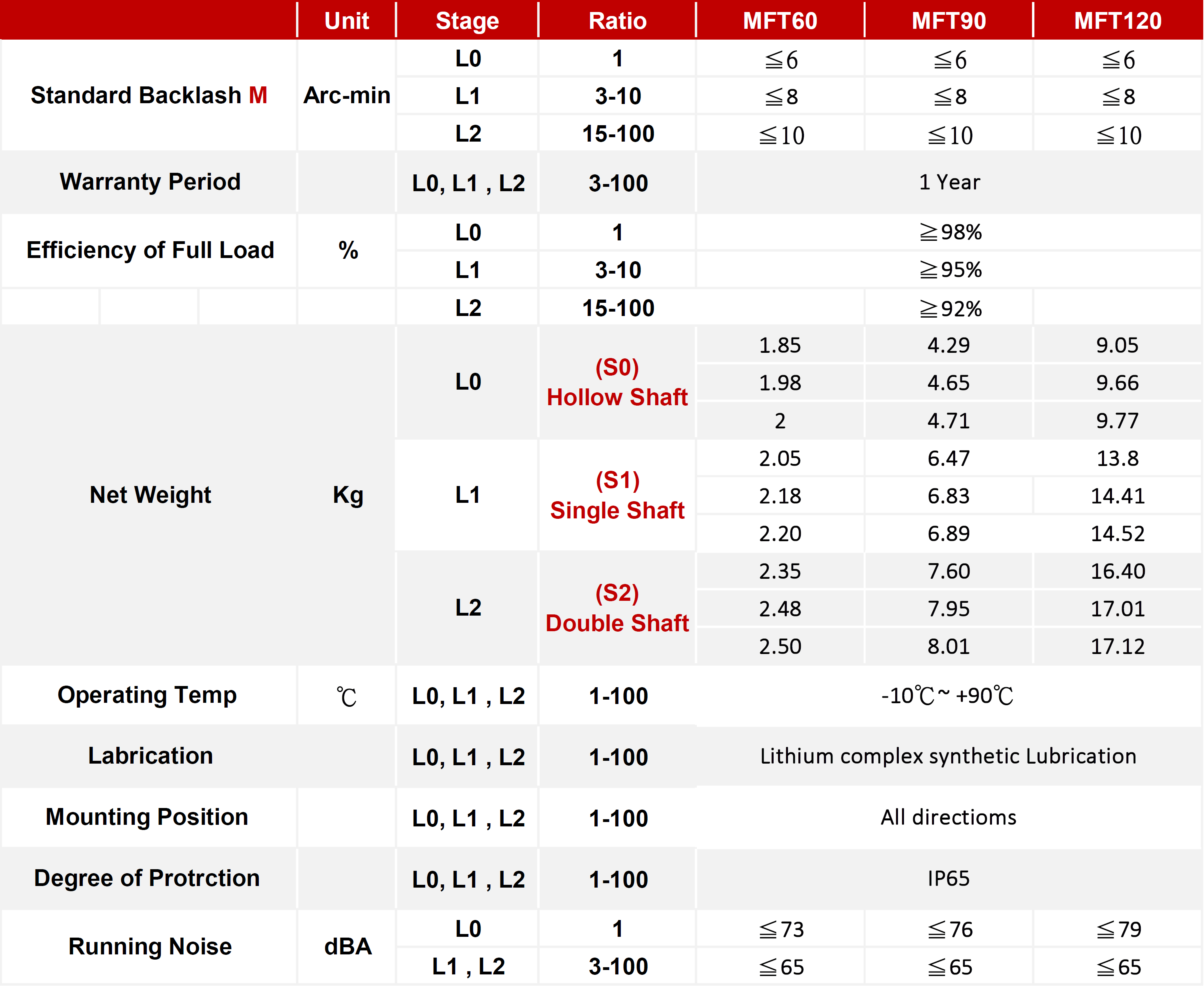

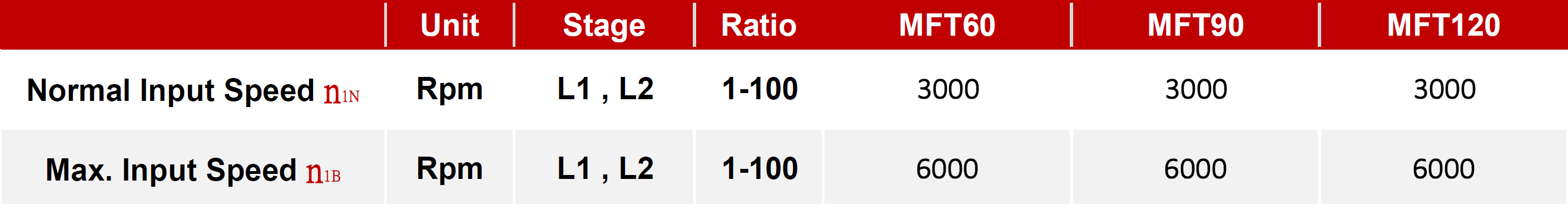

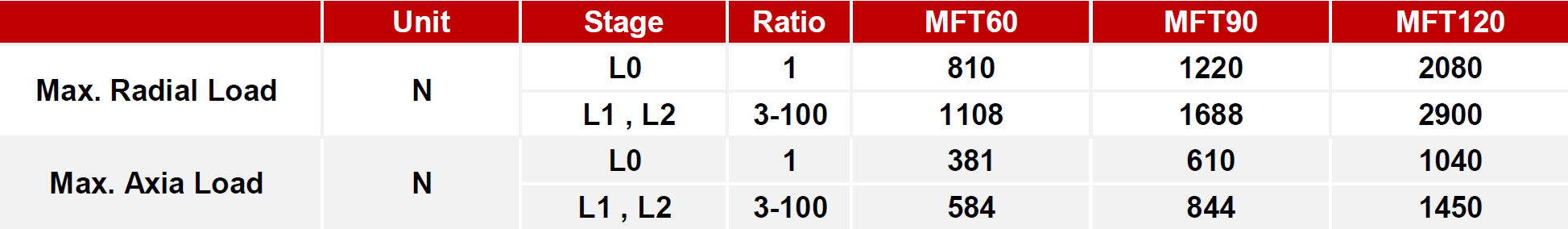

Technical specifications
Model
