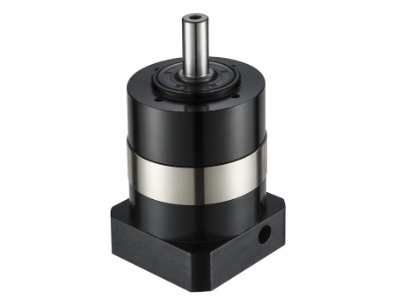

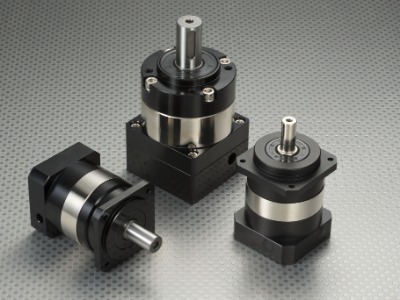

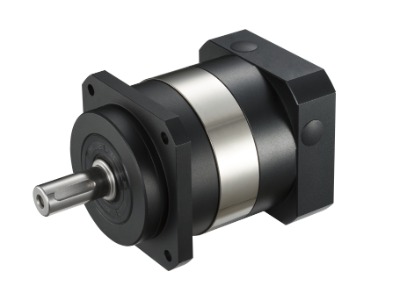

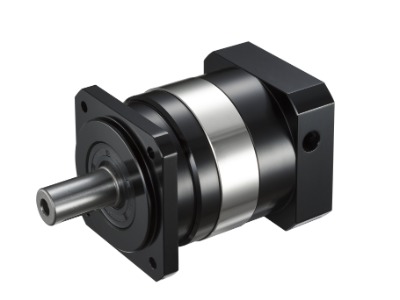

P Series (PG / PF / PX) Cost Effective, Universal Use Planetary Gearbox
Planetary Gearbox Features

．Backlash:

Stage1 (L1): Standard: ≦12-17 arc-min

Stage2 (L2): Standard: ≦15-20 arc-min


．Ratio:

Stage1(L1): 3-10

Stage2(L2): 9-100


．Efficiency of Full Load:

Stage1(L1): ≧94%

Stage2(L2): ≧91%

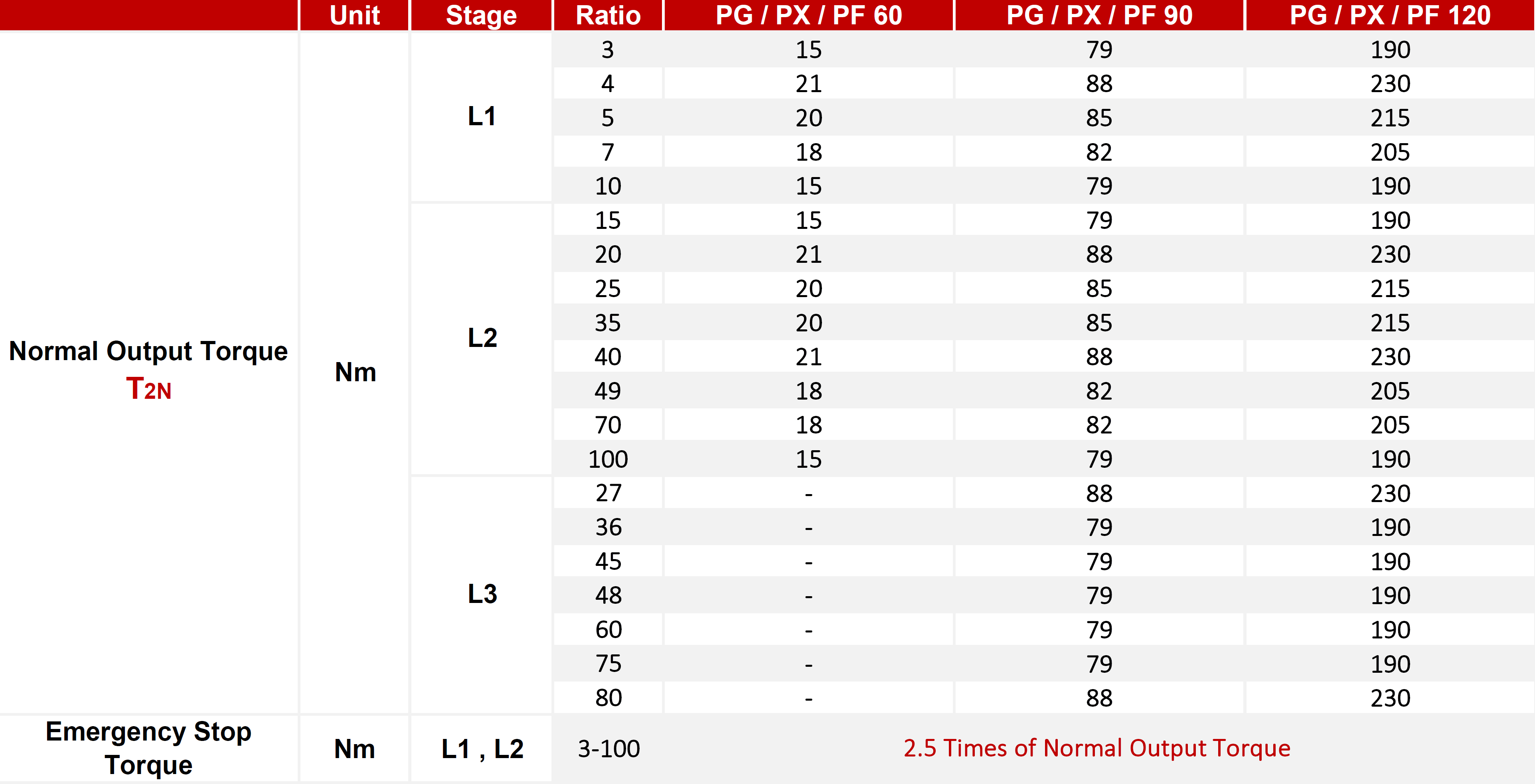

．Normal Output Torque: Torque: 5-230 Nm/p>

．Running Noise: ≦70 dBA

．Protection Grade: IP65

Catalog

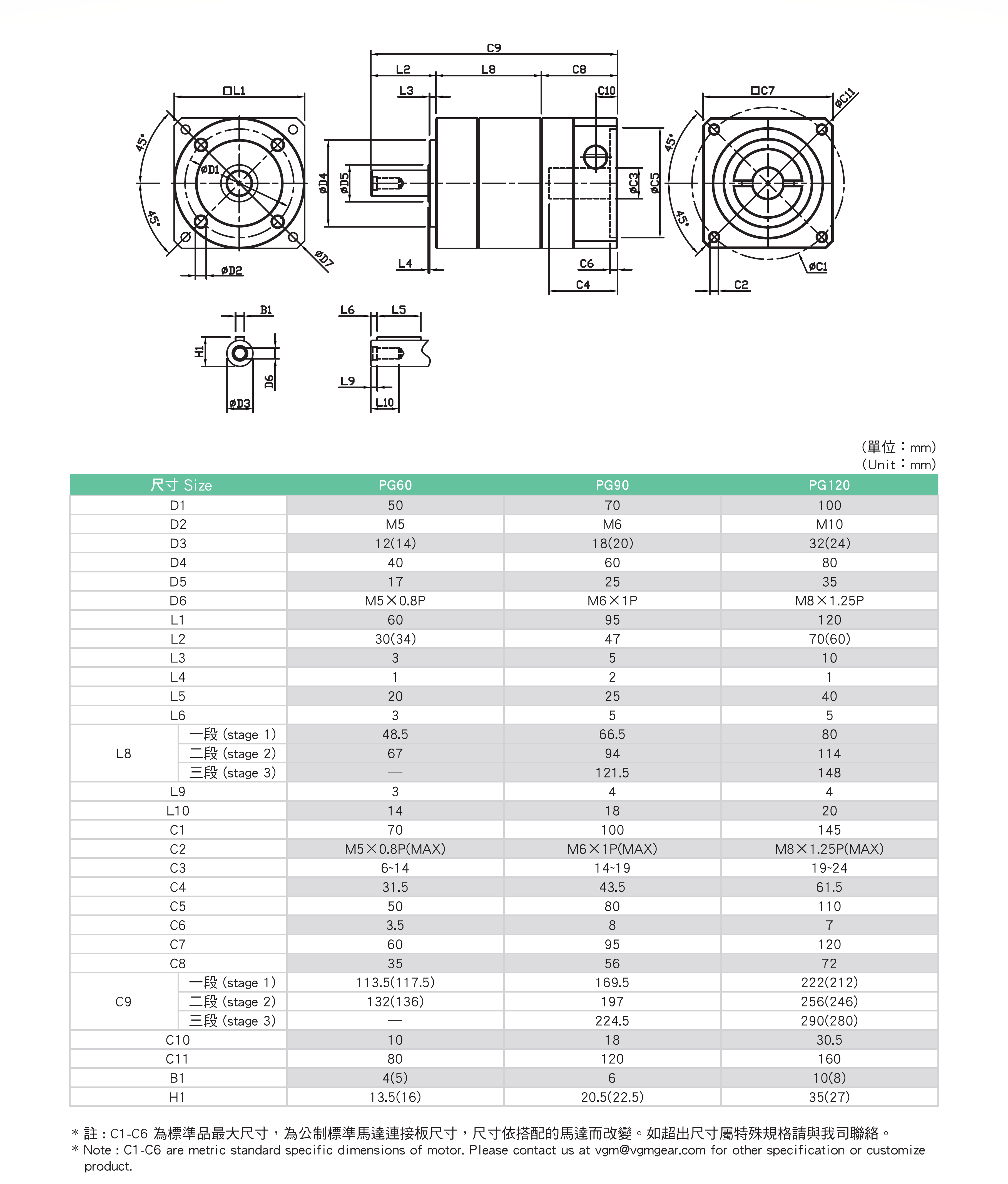

Drawing
Frame Size
60
90
120

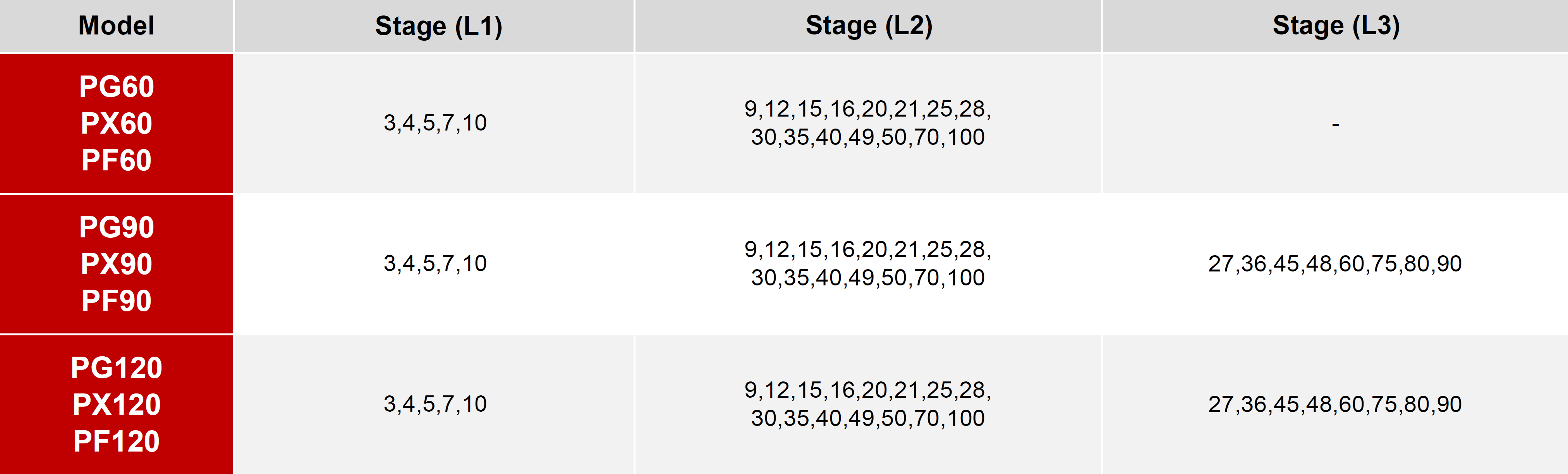

Ratio
Stage 1 (L1)
3
4
5
7
10
Stage 2 (L2)
9
12
15
16
20
21
25
28
30
35
40
49
50
70
100
Other ratio
Please contact us
Backlash
Standard Backlash:
(L1): ≦10-15 arc-min
(L2): ≦13-18 arc-min
Output Shaft Type
Output Shaft with Key

Features

．The highest dynamics in multiple axis systems

．Unrivaled price-performance ratio

．Low heat generation at highest speeds

．For any mounting position

．Lifetime lubrication for maintenance-free operation

．Precise gearing

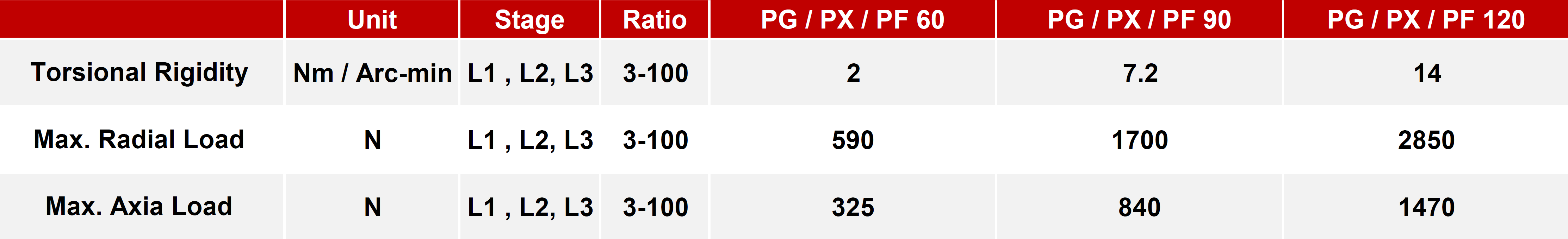

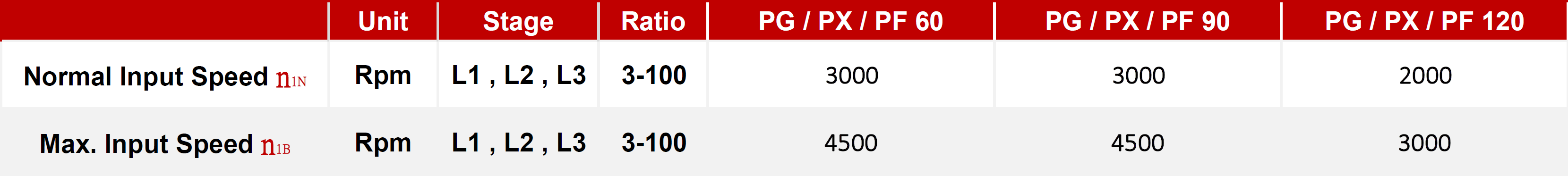

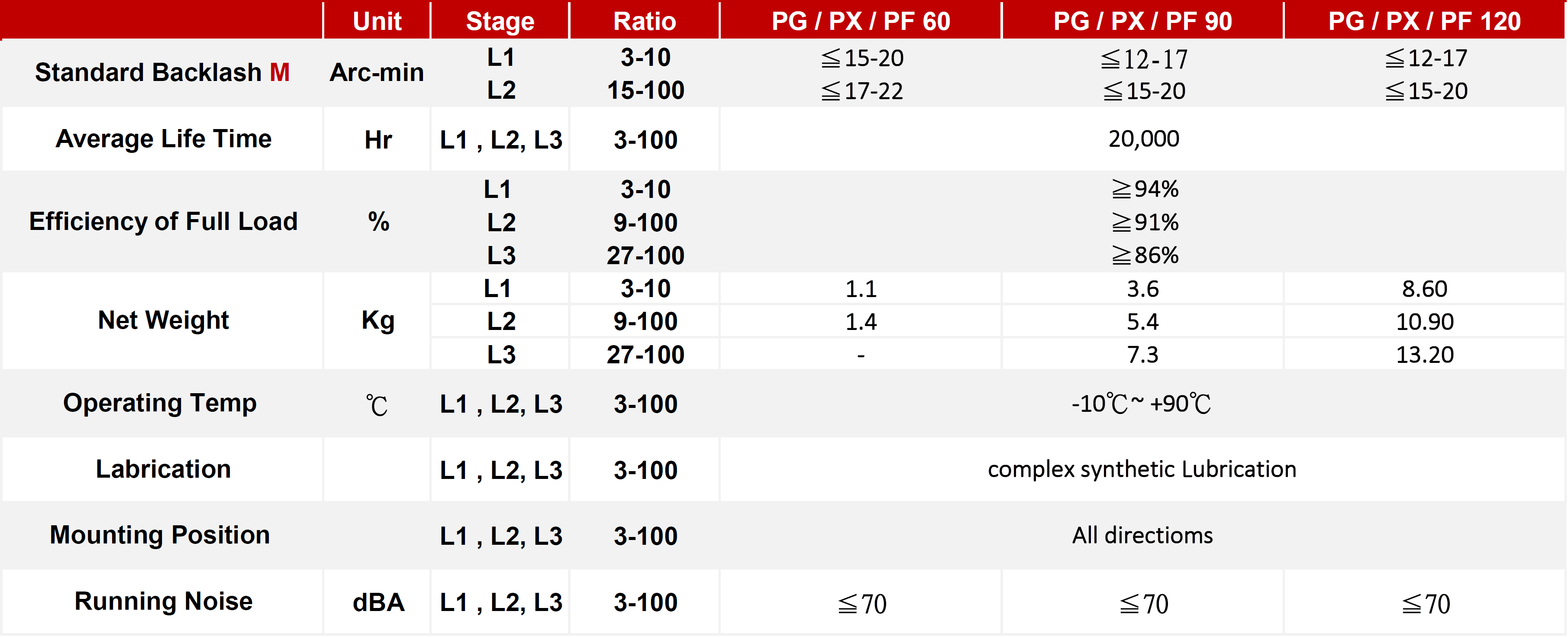

Technical specifications

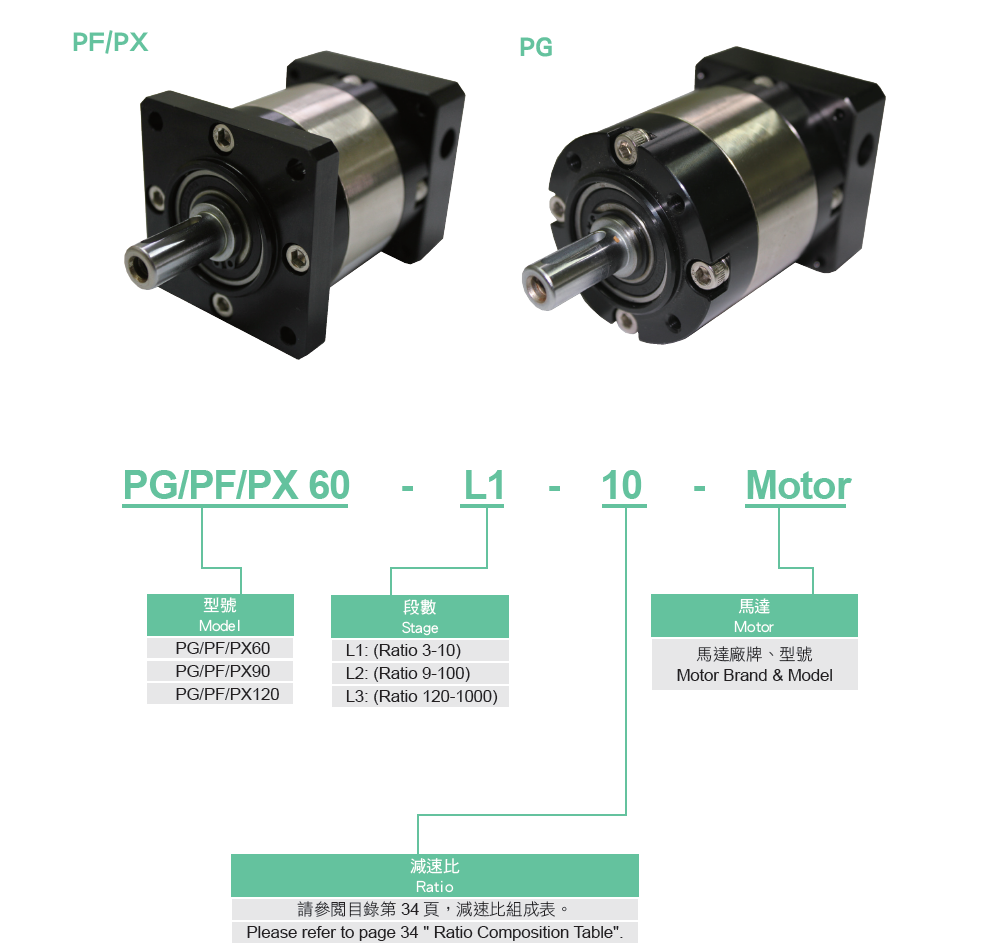

Model


VGM
